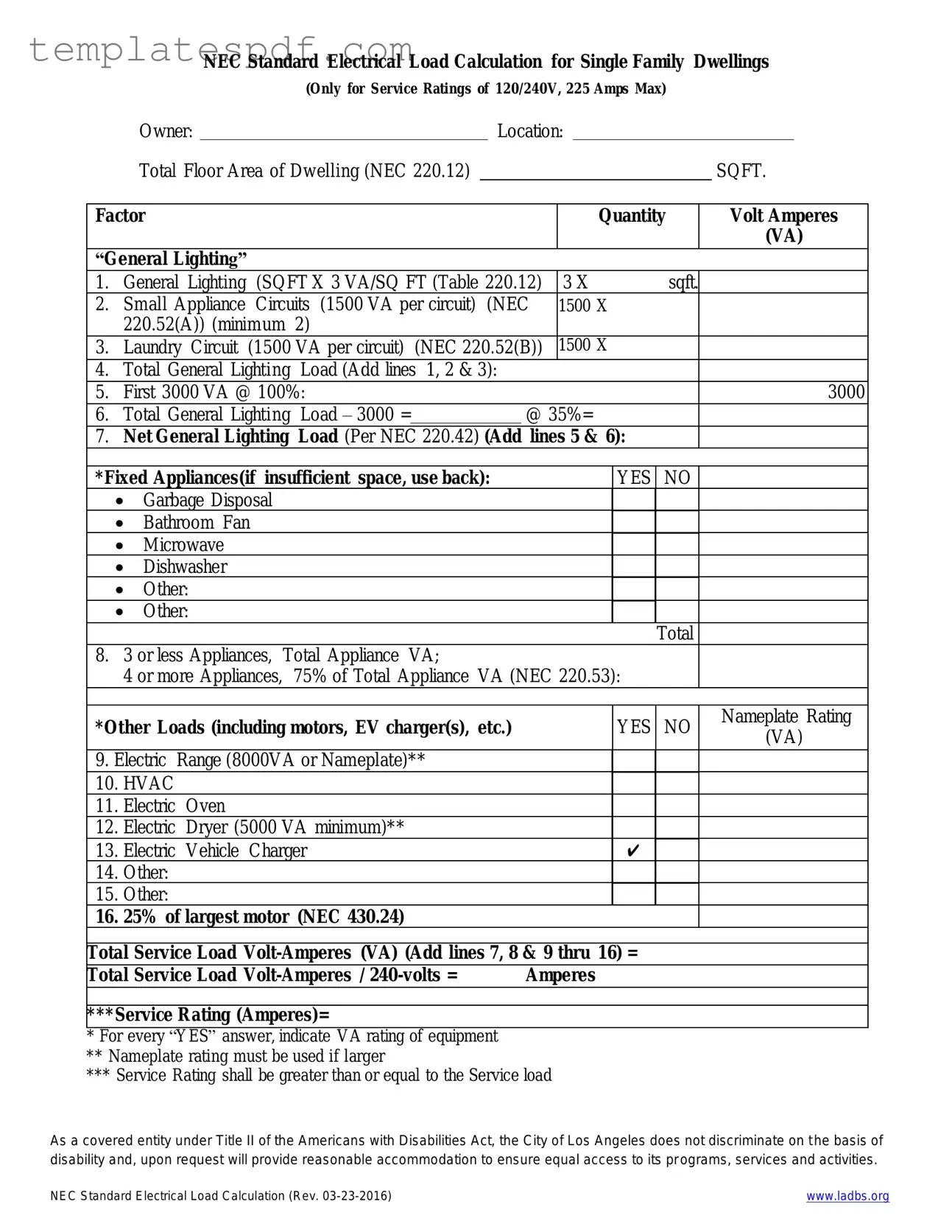

NEC Standard Electrical Load Calculation for Single Family Dwellings
(Only for Service Ratings of 120/240V, 225 Amps Max)
Owner:
Location:
Total Floor Area of Dwelling (NEC 220.12)
SQFT.
Factor
Quantity
Volt Amperes
(VA)
“General Lighting”
1.
General Lighting (SQFT X 3 VA/SQ FT (Table 220.12)
3 X
sqft.
2.
Small Appliance Circuits (1500 VA per circuit)
(NEC
1500 X
220.52(A)) (minimum 2)
3.
Laundry Circuit (1500 VA per circuit) (NEC 220.52(B))
4.
Total General Lighting Load (Add lines 1, 2 & 3):
5.
First 3000 VA @ 100%:
3000
6.
Total General Lighting Load – 3000 =
@ 35%=
7.
Net General Lighting Load (Per NEC 220.42) (Add lines 5 & 6):
*Fixed Appliances(if insufficient space, use back):
YES
NO
Garbage Disposal
Bathroom Fan
Microwave
Dishwasher
Other:
Total
8.
3 or less Appliances,
Total Appliance VA;
4 or more Appliances,
75% of Total Appliance VA (NEC 220.53):
*Other Loads (including motors, EV charger(s), etc.)
Nameplate Rating
9. Electric
Range (8000VA or Nameplate)**
10. HVAC
11.
Electric
Oven
12.
Dryer (5000 VA minimum)**
13.
Vehicle Charger
✔
14.
15.
16.
25% of largest motor (NEC 430.24)
Total Service Load Volt-Amperes (VA) (Add lines 7, 8 & 9 thru 16) =
Total Service Load Volt-Amperes / 240-volts =
Amperes
***Service Rating (Amperes)=
*For every “YES” answer, indicate VA rating of equipment
**Nameplate rating must be used if larger
***Service Rating shall be greater than or equal to the Service load
As a covered entity under Title II of the Americans with Disabilities Act, the City of Los Angeles does not discriminate on t he basis of disability and, upon request will provide reasonable accommodation to ensure equal access to its programs, services and activities.
NEC Standard Electrical Load Calculation (Rev. 03-23-2016)
www.ladbs.org
What is the LADBS NEC Standard Electrical Load Calculation form?
The LADBS NEC Standard Electrical Load Calculation form is a document required by the Los Angeles Department of Building and Safety (LADBS) for assessing the electrical load of a building or installation. This form ensures that the electrical system can handle the anticipated load safely and efficiently, complying with the National Electrical Code (NEC) standards. It is crucial for obtaining necessary permits and ensuring the safety of electrical installations.
Who needs to fill out this form?
This form must be completed by anyone planning to install, modify, or upgrade electrical systems in a building. This includes homeowners, contractors, and electricians. It is essential for projects involving new constructions, renovations, or any significant electrical work to ensure compliance with safety regulations.
What information is required on the form?
The form requires detailed information about the electrical loads that will be present in the building. This includes the types of appliances, lighting, heating, and cooling systems. Additionally, the form may ask for the square footage of the building and the number of circuits planned. Accurate information is vital for a correct load calculation.
How is the electrical load calculated?
Electrical load is calculated based on the anticipated usage of various electrical devices and systems within the building. The form typically provides guidelines on how to determine the load for different categories, such as residential or commercial. Load calculations consider factors like wattage, voltage, and the number of devices. Following the guidelines ensures that the calculations are accurate and meet NEC requirements.
What happens if the form is not submitted?
Failure to submit the LADBS NEC Standard Electrical Load Calculation form can lead to delays in obtaining necessary permits. Without the proper permits, construction or electrical work may be halted, leading to increased costs and potential legal issues. It is crucial to complete and submit the form to avoid these complications.
Where can I find this form?
The LADBS NEC Standard Electrical Load Calculation form can be found on the official LADBS website. It is available for download in a PDF format. Additionally, physical copies may be available at local LADBS offices. Ensure you have the most current version of the form before submission to avoid any issues.
